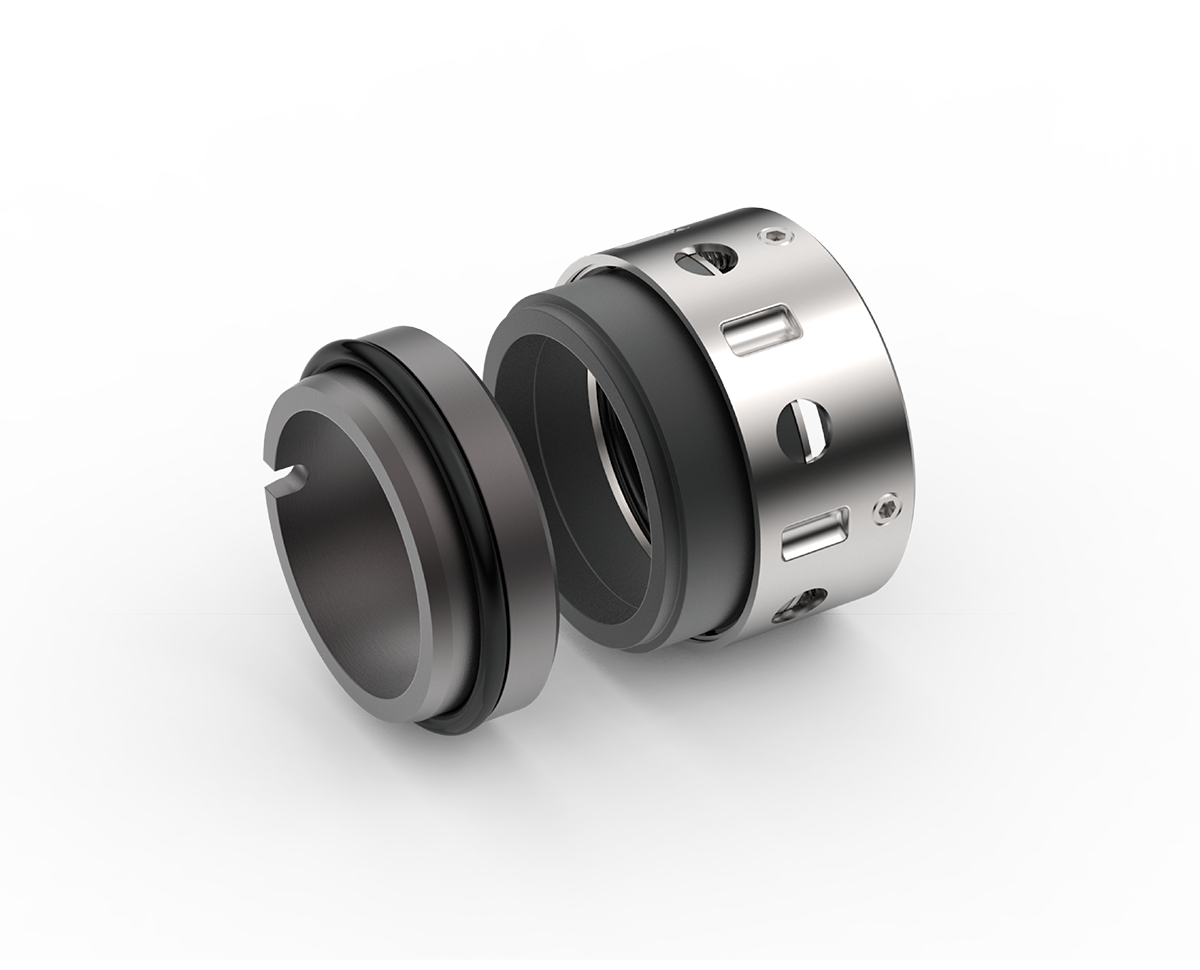

O 型圈式機械密封
工作參數(Operating Conditions)
溫度(Temperature)：-40℃～ +250℃
壓力(Pressure)：≤ 2.5MPa
線速度(Speed)：≤ 15m/s適用介質(Applications)
清水、污水、油及其它強腐蝕流體
Clean water, sewage water, oil and other strong corrosive fluids
材料(Materials)
動環(Rotary Ring)：Q1,Q2,V1
靜環(Seat Ring)：Q1,Q2,B,A
輔助密封(Secondary Seal)：V,P,E,M1,M2,T
彈簧及結構件(Spring and Metal Parts)：F,G,M靜環適合類型(Seat Types)
標準(Standard)：G90
可替換(Alternative)：G6,G4,G46
